FusionFlow™ MXM Gas Blending System

Gas blending system for precise laboratory operations

Gas mixers flexible enough for hundreds of applications. A highly customizable gas mixing platform for single recipe high flow operations and complex R&D dilutions. Effortlessly create blends of up to 10 gas streams at total flow rates up to 120,000 SLPM.

Consistent, accurate gas mixtures are controlled by our MFCs. Individual channels are tuned to provide accurate mixes, outlet pressure control, and rapid responses to changing process conditions.

Accuracy as good as ± 0.6% of targeted mix percentage
25 ms control response for individual MFCs (T63)
Onboard library of 49 selectable gas calibrations
Blend up to 10 elemental gases, with support for premixed gases (up to 5 constituents)
Embedded Systems computer with integrated pressure sensing module
Hi-resolution touchscreen interface for live multi‑variate data monitoring

Full Scale Flow Ranges, dependent on model

0.5 SCCM full scale flow range – 120,000 SLPM full scale flow range

Max inlet pressure

145 PSIG (higher pressure systems available, talk with an engineer)

Request a Quote

Ask an Engineer

Looking for other gas mixing products?

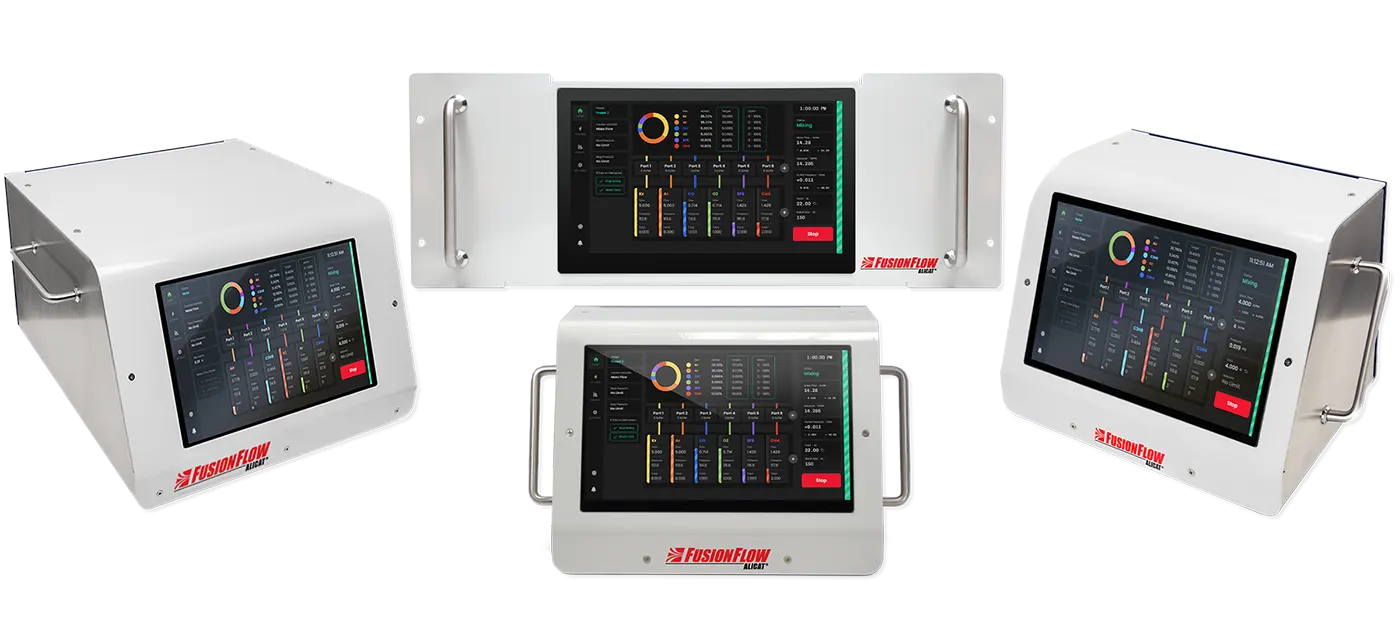

MXM-TK Benchtop Turnkey

All-in-one 6‑channel mixer for low to medium flow applications

Flagship Technology

Table-top gas blending in one box
2 to 6 integrated MFCs, where any can be from 0 – 100 SCCM to 0 – 100 SLPM units
9.2” x 14.0” x 14.2” powder-coated chassis with stainless-steel flow path

MXM-MINI Benchtop Turnkey

All-in-one 6‑channel mixer for low flow applications

Highly Portable

A small form‑factor version of the turnkey MXM, for low flow applications
2 to 6 integrated MFCs, where any can be from 0 – 10 SCCM to 0 – 10 SLPM units (non-corrosive gases only)
Full rear panel connectivity for all gases and connections
9.2” x 11.7” x 7.3” powder‑coated chassis with aluminum flow path

MXM-SA Benchtop Remote

Open form‑factor 10‑channel mixer for all flow applications (table‑top)

Fully Configurable

Remote control interface box
2 to 10 onboard MFCs, where any can be from 0 – 100 SCCM to 0 – 12,000 SLPM units
Fixed flow applications and dynamic pressure control for added range
9.2” x 11.7” x 7.3” compact table-top controller

MXM-RM Rackmount Remote

Open form-factor 10‑channel mixer for all flow applications (rack mount)

Integrated Equipment

An industrial form‑factor that includes all the same features and capabilities of the benchtop remote MXM
2 to 10 onboard MFCs, where any can be from 0 – 100 SCCM to 0 – 12,000 SLPM units
19” 4U rack space, steel chassis, rear pressure ports

Recommended Minimum Flow Rate for Individual MFCs

0 – 10 SCCM to 0 – 100 SCCM MFCs: 1 SCCM
0 – 200 SCCM to 0 – 5 SLPM MFCs: 50 SCCM
0 – 10 SLPM to 0 – 100 SLPM MFCs: 1% of full scale
0 – 250 SLPM to 0 – 12,000 SLPM MFCs: 2% of full scale (remote form‑factors only)

Build Features

Automation and Integration

Extensive network OIT integration with MQTT communication
Export all gas mixer data to .CSV files, MySQL, PostGres, MSSQL, or Microsoft Azure cloud
Integrated scripting, scheduling, and event handling system

Displays

10.1” IPS QLED capacitive multi‑touch hardened glass panel
1280 x 720 resolution, 500 cd/m^2 brightness, 170 degree viewing angle

Electrical Connections

2 x USB 2.0
2 x USB 3.0
1 X RJ45 Gigabit Ethernet
24 v DC
Service port
Outboard controllers

Process Connections

Turnkey form-factor: 1/8” and 3/8” compression tube bulkhead fittings on rear panel
Remote form-factors: 1/8” compression tube bulkhead fittings on rear panel
Mini Turnkey form-factor: 1/8” Female NPT on rear panel

Hazardous Environment Ratings

No options for classified/hazardous areas
For explosive environments, see IS-Max Series

Mass Flow Controllers

For more information regarding integrated Alicat MFCs please see our mass flow controllers page.

Ready for the final details?

Each product is made-to-order.  Alicat’s Applications Engineers are ready to provide expertise and discuss custom options, ensuring the best fit for your needs.

Ask an Engineer

Add-ons + Accessories

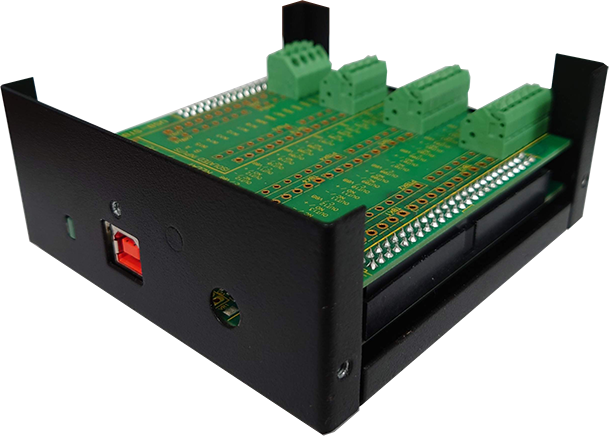

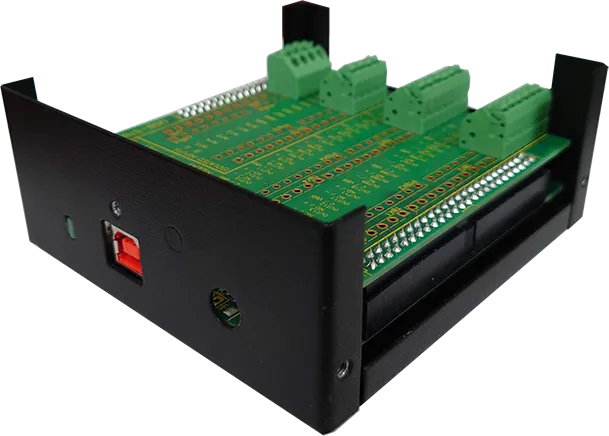

Digital I/O Module

USB-powered digital I/O module with 4 inputs / 4 outputs

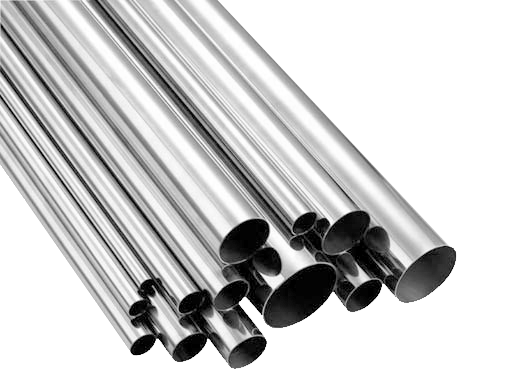

Static Mixing Tubes

Stainless steel static mixing tubes in various lengths and diameters

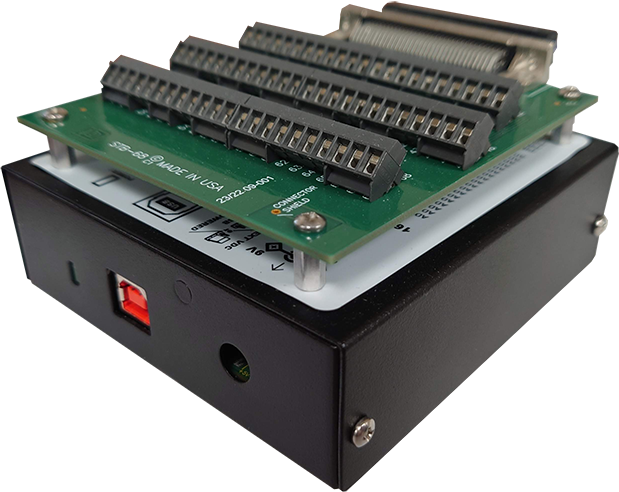

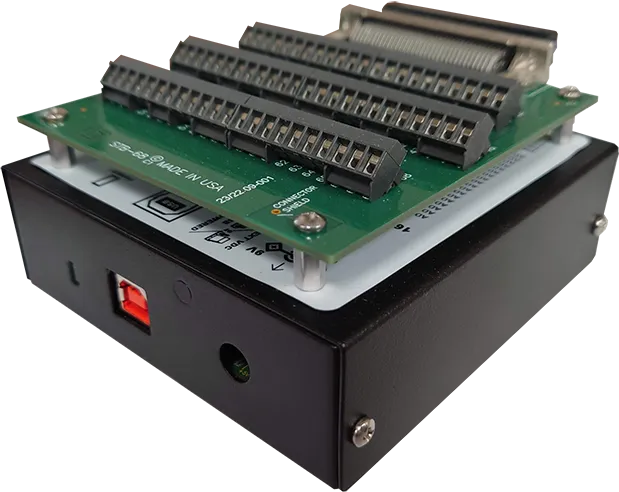

Analog I/O Module

USB-powered analog I/O module with 4 inputs / 2 outputs

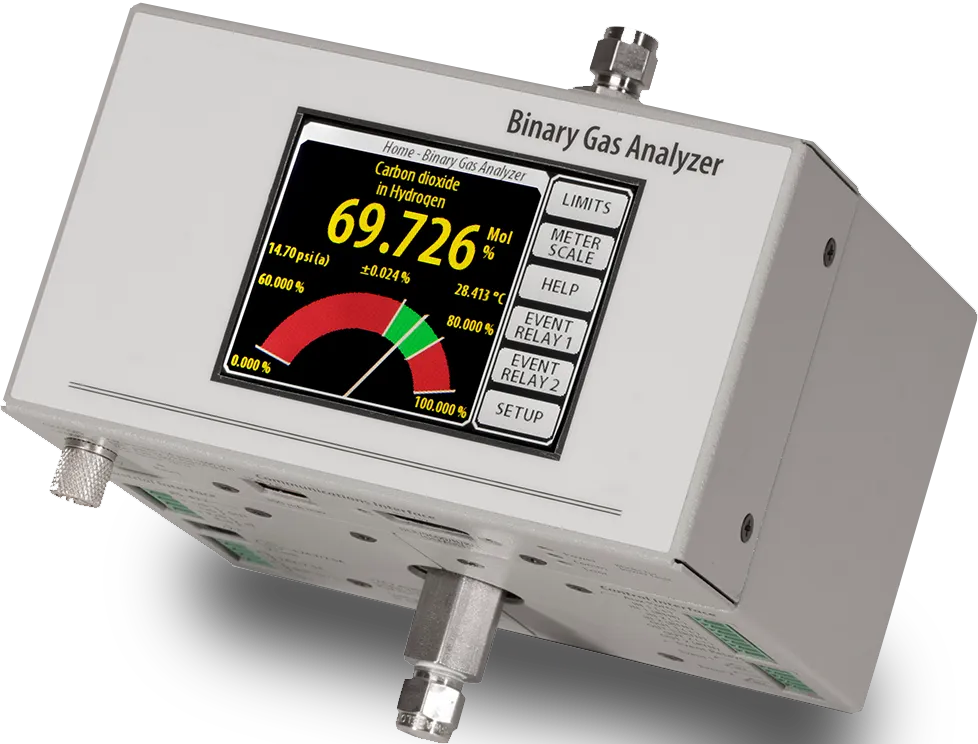

Binary Gas Analyzer

High-accuracy binary gas analyzer for 2‑gas blends

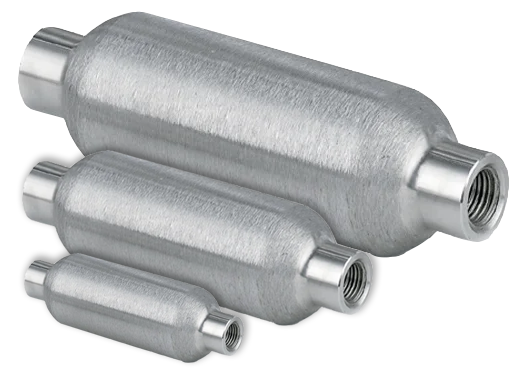

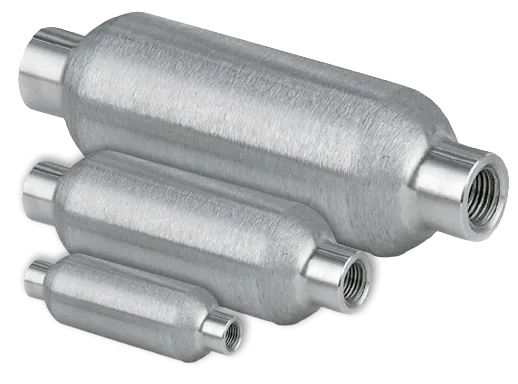

Ballast Cylinders

Stainless steel ballast cylinders in 6 different sizes

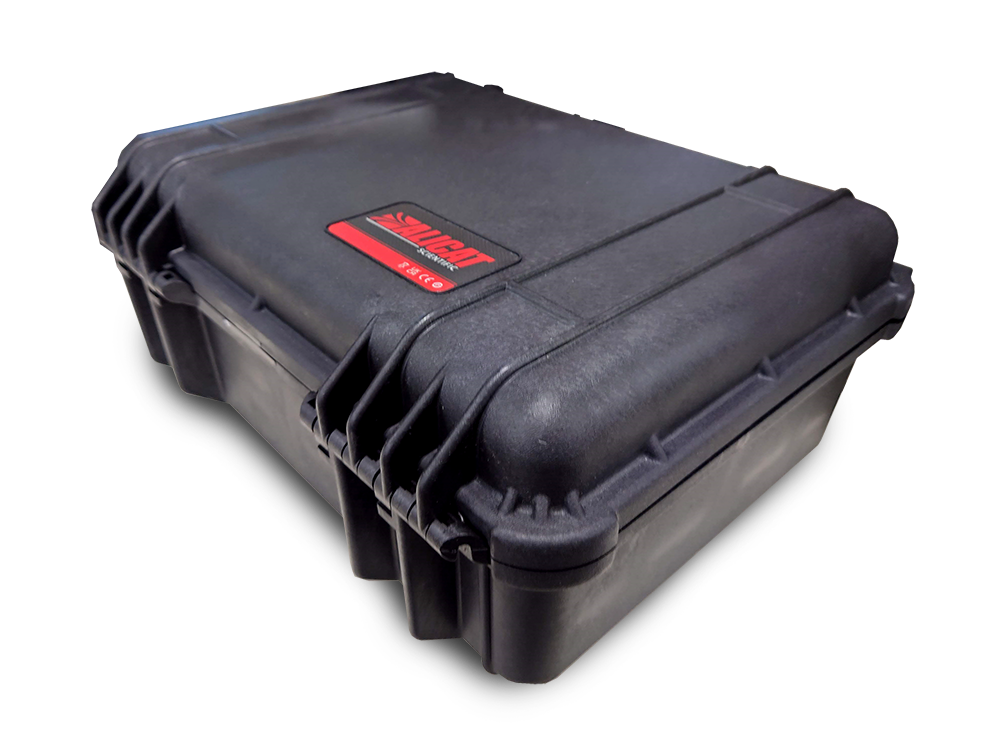

Pelican Transit Case

Rugged and high‑quality Pelican cases custom‑fitted for MXM systems
