FP-25 PM Air Sampler Calibrator Kit

Bluetooth enabled calibrator for PM samplers and air quality analyzers

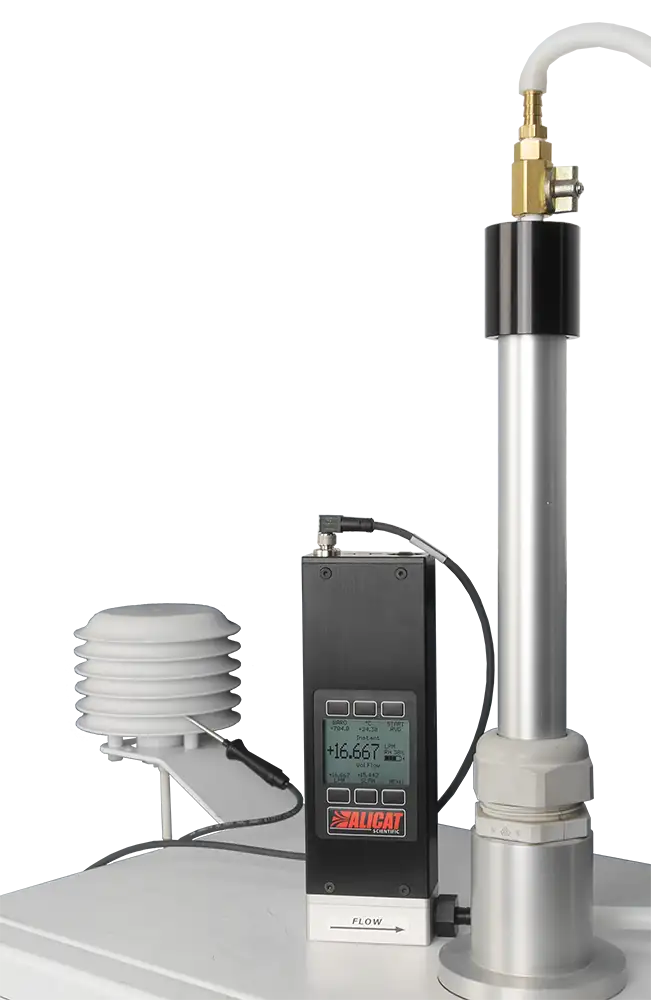

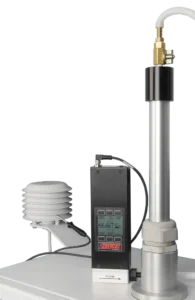

FP-25 connected to a particulate monitoring air quality sampler for flow audit

The FP-25 PM Air Sampler Calibrator kit connects directly to air monitoring instruments while calibrating. It features superior leak protection for use in any weather. Operators can stay dry while adjusting the device via Bluetooth connected app. Use FP‑25 to audit and calibrate PM10 and PM2.5 particulate matter monitors and air quality testing/analyzer devices to regulatory standards.

PM air monitor compatibility. Compatible with all PM air monitors: TEOM, Partisol, Beta Attenuation Monitors (BAM), T640.
Easy integration. Bluetooth antenna plus Alicat Connect app remotely reads air sampler measurements, with data-logging capabilities for data management software.
Accurate, multi-variate measurement. NIST‑traceable mass flow, volumetric flow, pressure, and temperature measurements to ± 1% of reading.
Portable & durable. Battery‑powered calibrator mounts directly to air monitoring (FRM or FEM) instrument, negating effects of wind gusts. Any weather — IP67 rated. Accurate from −30°C to +60°C and up to 95% relative humidity.

To learn more about how the FP-25 works, check out this article on flow standards for PM air samplers.

Specifications, operating manuals, brochures, software, and utilities →

Flow Range

0.125 – 25 SLPM

Request a Quote

Ask an Engineer

Looking for a mass flow meter instead?

Compatible PM Air Monitor Samplers and Analyzers

The FP-25 can be used to audit and calibrate flow, pressure, and temperature readings for the samplers and analyzers below:

PM10 and PM2.5 FRM samplers (16.7 LPM) – Mesa Labs PQ series, Met One E‑FRM, Thermo Scientific Partisol 2000/2025(i) and Dichots, Tisch TE‑Wilbur
PM10 and PM2.5 FEM analyzers (16.7 LPM) – Environment S.A. MP101M, Met One BAM‑1020/1022 and E‑BAM, Thermo Scientific BAM 5014i, SHARP 5030i and TEOM 1400(a/ab)/ 1405 and Dichots, Teledyne T640
IMPROVE network PM samplers (22.8 LPM)
Low-flow PM samplers (1-5 LPM) – Ecotech MircoVol and Protinus, Grimm EDM, Met One E‑Sampler
Carbon speciation samplers (22.0 LPM) – URG‑3000(N)
Carbon speciation samplers (6.7 LPM) – Met One SASS and SuperSASS
Black carbon analyzers (1-5 LPM) – Magee Aethalometer, Met One BC‑1050

Read more about setting up your calibrator.

Performance Parameters for PM Air Sampler Calibration Kit

Flow Range

0.125 to 25 SLPM

Flow Measurement Range

0.5% to 100% of full scale

Flow Accuracy (NIST‑traceable)

± 1% of reading

Barometric Pressure Accuracy (NIST‑traceable)

± 1 mmHg

Temperature Probe Accuracy (NIST‑traceable)

± 0.2ºC

Pressure Drop

0.10 PSID at 16.7 LPM; 0.16 PSID at 25 LPM

Typical Flow Reading Response Time

5 ms (may be up to 10 ms under very low flow conditions)

Typical Temperature and Humidity Equilibration

Less than 5 minutes

Compatible Gases

Ambient air only

Operating Temperature

−30°C to +60°C

Ambient Pressure

475 – 825 mmHg

Proof Pressure

80 PSIA

Max Differential Pressure

10 PSID

User-Selectable Reference Conditions (default)

25°C & 1 ATM (STP) and 0°C & 1 ATM (NTP)

Build Specifications

Wireless Communication

Bluetooth^® Low Energy (requires Alicat Connect and a compatible Android or iOS mobile device)

Displays

Backlit monochrome (default)

Process Connections

Direct Mode adapters for 1.25” OD sampler downtubes + 1/4” NPT barb fitting

Ingress Protection

IP67 (default)

Humid Gases

Relative humidity compensation (default)
