Precision Acetylene Sampling in Hazardous Petrochemical Environments: Intrinsically Safe Flow and Pressure Control Solutions

In ethylene steam cracking systems, managing trace contaminants has ramifications on plant safety, product quality, and regulatory compliance. One of the most critical byproducts in this process is acetylene, a highly reactive gas that can cause downstream process disruptions and hazardous reactions if not tightly controlled.

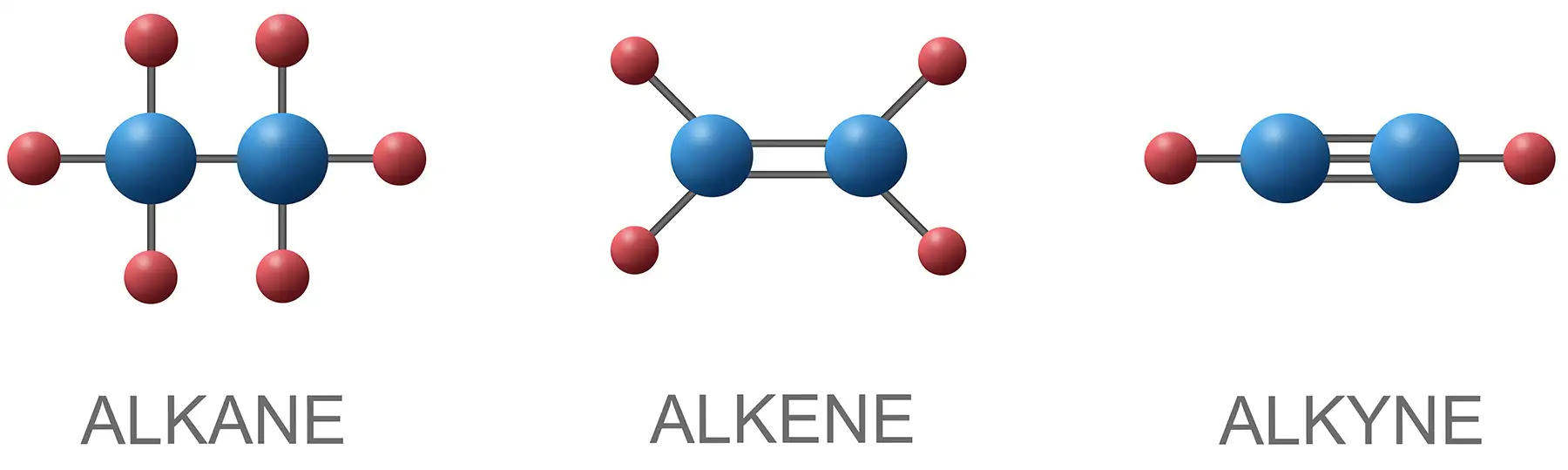

To avoid risks of downstream polymerization catalysts, and to prevent unwanted side reactions, many chemical processing plants employ thermal‑catalytic hydrogenation to selectively convert acetylene (C₂H₂) into ethylene (C₂H₄). However, over‑ or under‑conversion can be costly. Too little conversion leaves harmful acetylene in the stream; too much wastes hydrogen and risks producing undesired side products.

So, precise, reliable gas sampling is essential, especially in hazardous areas such as Class I, Division 1 (C1D1) or Zone 0 locations where electrical safety is paramount.

In post‑hydrogenation acetylene analysis, sample handling systems must:

1. Deliver gas at a stable, known flow rate to the analyzer
2. Maintain sample integrity from
3. Operate without introducing ignition hazards in classified areas

A recent North American case study demonstrated that intrinsically safe, integrated mass flow and pressure control can meet all three requirements while simplifying system design.

In this installation, a side‑stream from the process line was routed through:

• Heated transfer lines to prevent premature condensation
• A chilled impinger train to remove volatiles and particulates
• An intrinsically safe mass flow controller maintaining 0 – 200 CCM at 15 PSIG with ± 0.5% of reading accuracy

The controller integrated laminar differential pressure sensing, closed‑loop actuation, and multi‑parameter monitoring in a single enclosure. Real‑time measurement of mass flow, temperature, absolute/gauge/barometric pressure, and totalized flow allowed operators to:

• Verify sample stability before analysis
• Detect upstream/downstream pressure fluctuations
• Identify heating or condensation issues early
• Correlate analyzer data with actual delivered sample volume
• Assess valve usage for optimizing preventive maintenance

All control parameters were sent directly to the plant’s PLC via Modbus RTU, ensuring seamless integration with digital process control systems.

Unlike separate sensors, control valves, and data loggers which must be interconnected, an integrated instrument:

• Reduces wiring and panel space requirements
• Shortens installation time and commissioning
• Minimizes leak points and potential failure modes
• Improves measurement repeatability under fluctuating process conditions

For oil & gas analyzers, particularly those handling flammable or toxic gases, this means:

• Lower total cost of ownership
• Higher uptime due to reduced maintenance complexity
• Better data integrity for compliance and quality assurance

While this example focused on acetylene removal verification, the same intrinsically safe flow and pressure control approach applies to:

• Hydrogen sulfide (H₂S) monitoring in refinery streams
• VOC sampling in petrochemical production
• Moisture and contaminant testing in natural gas transmission

By adopting compact, certified, high‑accuracy control systems, operators can standardize sampling methods across facilities, reduce hazardous‑area engineering effort, and improve confidence in analytical data. With hazardous location certification for North America, Europe and IECEx, international organizations can use the same communication protocols and data collection criteria in each facility.
